Alumina-Silica
Type UNIFORM C

Alumina-Silica
Type UNIFORM C

Please login or register to see prices

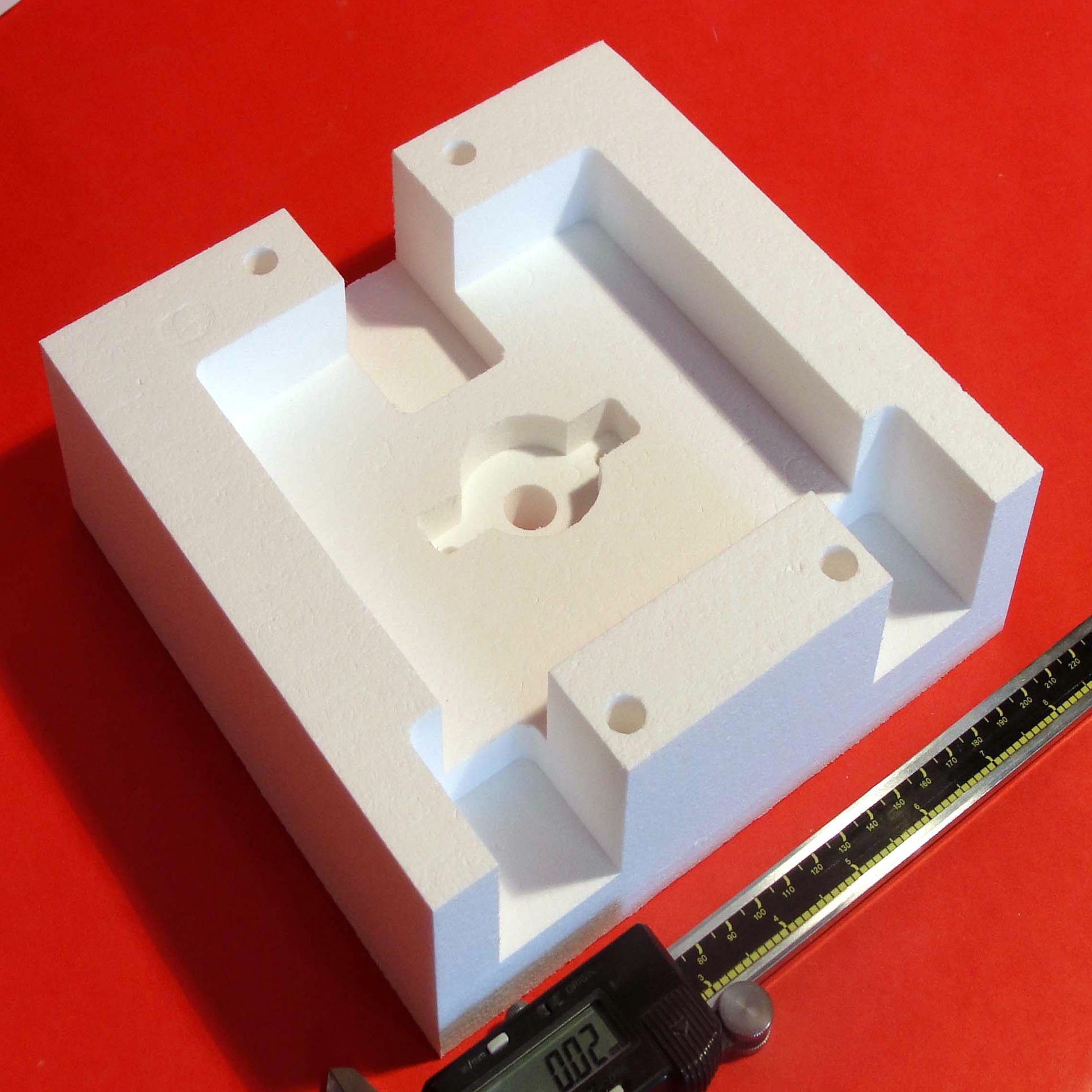

ZIRCAR Ceramics’ Alumina-Silica Type UNIFORM C is a 1420°C (2600°F) rated, unique family of ceramic-fiber-based insulations with exceptional machinability and very good strength.

Technical Data Sheet

UNIFORM C1 Safety Data Sheet

UNIFORM C2 Safety Data Sheet

Clear

Please LOGIN or REGISTER to see our pricing

Item No.: N/A Categories: ,

Description

ZIRCAR Ceramics’ Alumina-Silica Type UNIFORM C is a unique family of ceramic-fiber-based insulations with exceptional machinability and very good strength. UNIFORM C products are made of a blend of alpha-alumina polycrystalline fiber and specially prepared refractory ceramic fiber (RCF) with an inorganic amorphous silica binder. This binder is uniformly distributed throughout the thickness of the body without the use of any organic binders and therefore, UNIFORM C produces no smoke or odor when heated. Uniform products are designed to deliver low thermal conductivity with excellent thermal shock resistance.
UNIFORM C is manufactured in two varieties:
UNIFORM C1, with a bulk density of 0.29 g/cc (18 pcf) and
UNIFORM C2, with a bulk density of 0.45 g/cc (28 pcf).
UNIFORM C exhibits excellent resistance to chemical attack and is not affected by oil or water. It is, however, affected by hydrofluoric acid, phosphoric acid and strong alkalis.

Additional information

Weight N/A
Dimensions N/A
