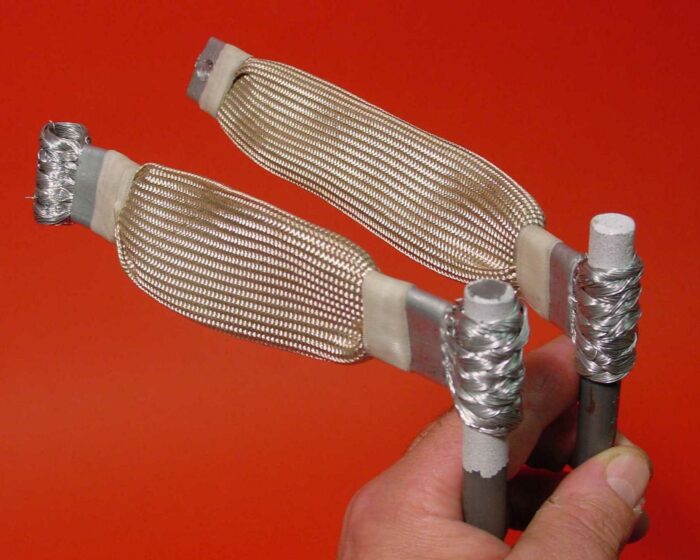

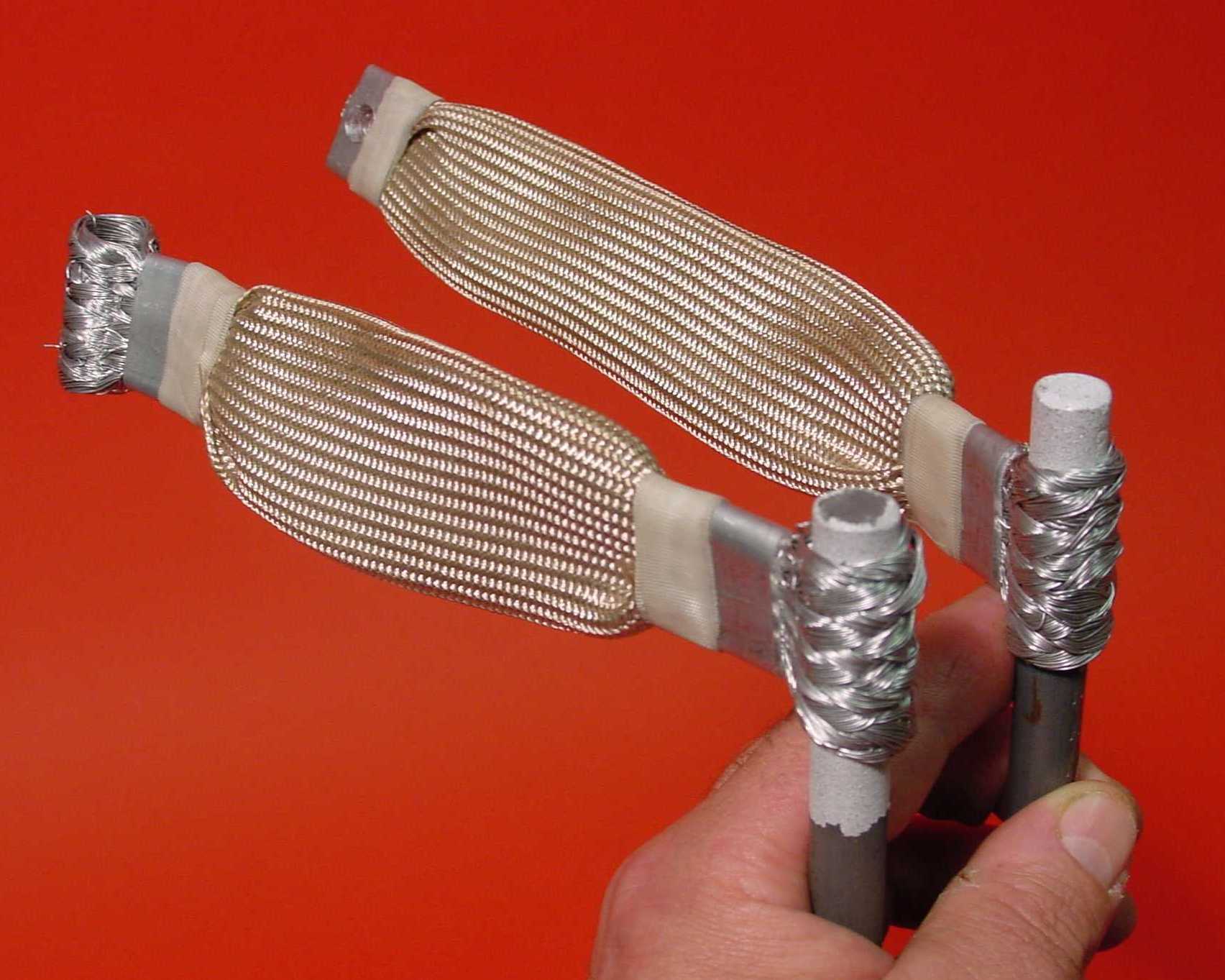

ZIRCAR Ceramics’ Heating Element Straps are used to connect MoSi₂Heating Elements together or to a power feed terminal post. Constructed of corrosion-resistant, braided aluminum strand strapping, these Heating Element Straps can provide many years of uninterrupted performance. Several types and styles are produced. The data presented herein is intended to help the user to determine the appropriateness of these products for their application. This data is a nominal representation of their properties and characteristics and therefore should not be used in preparing specifications.
Heating Element Strap Type 50A.

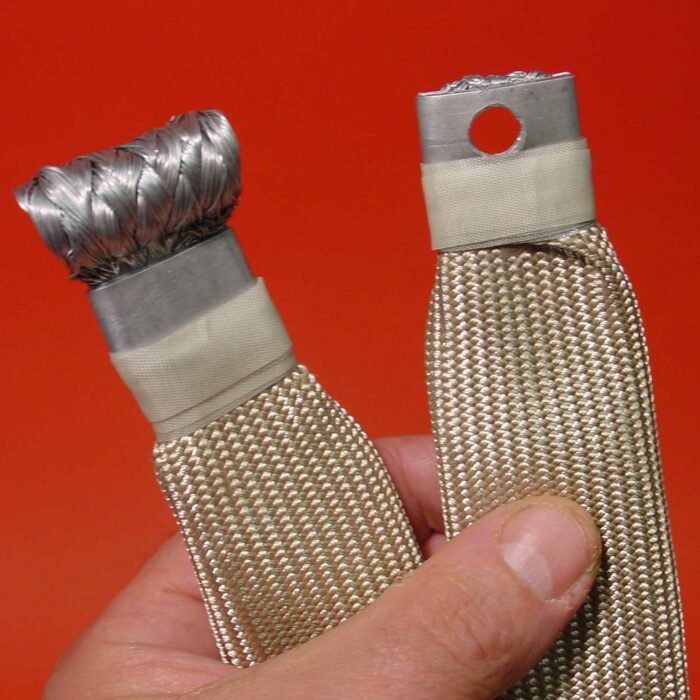

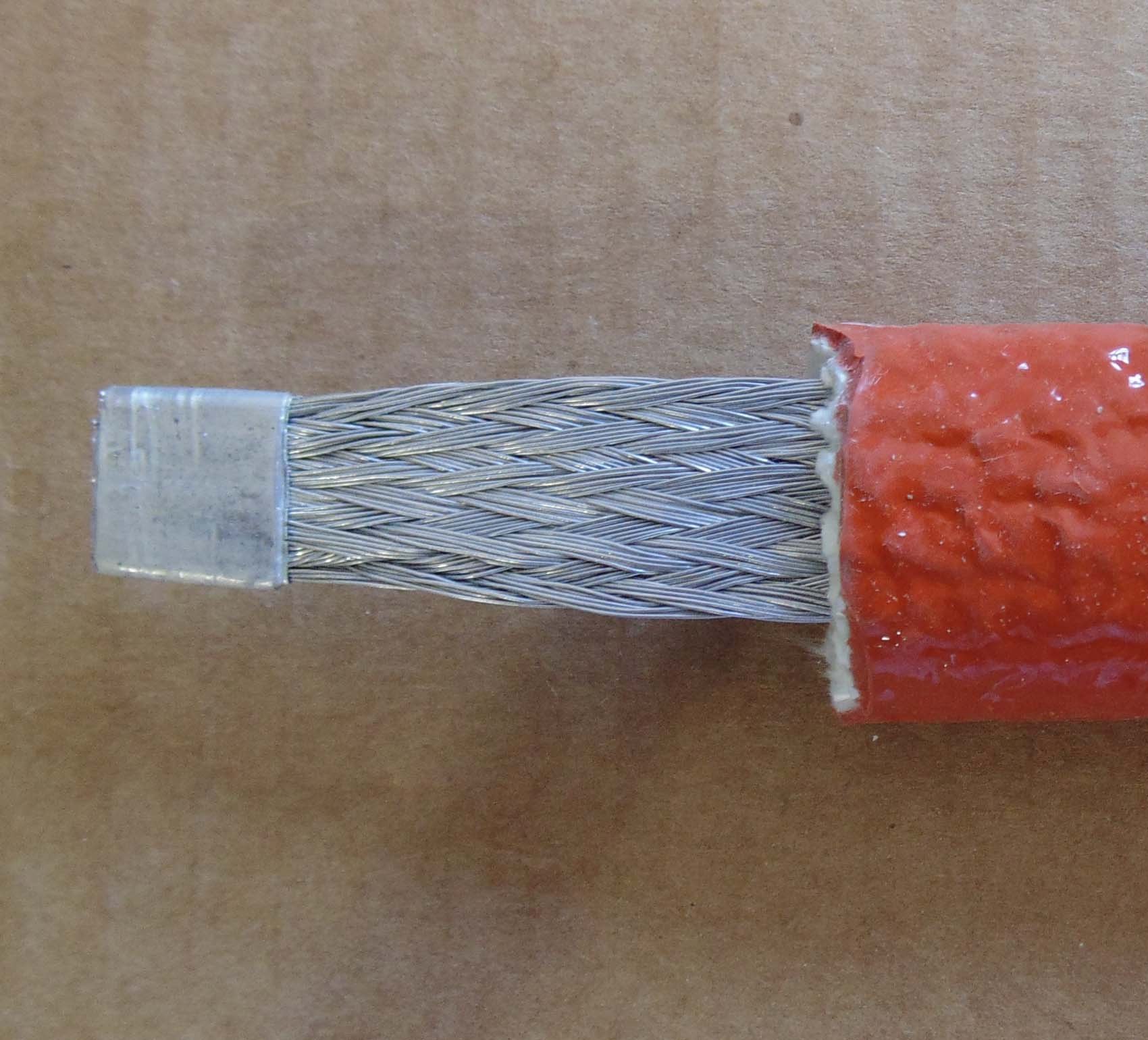

For use on 3/6 elements with 6mm diameter terminals. 50 Amp. current capacity. Single ply braid approximately 12.5mm (0.5”) wide x 2.0mm (0.80”) thick.
Two standard styles offerred.

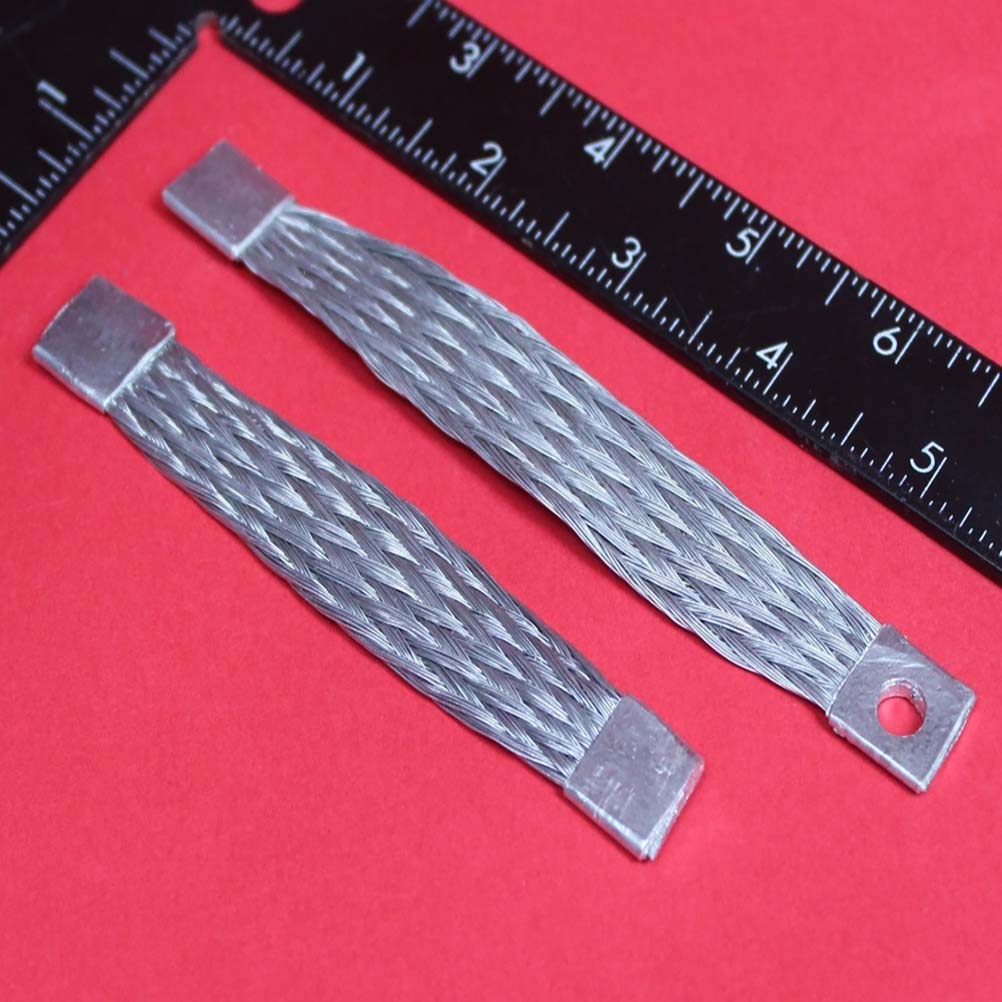

Style 1: Aluminum crimps both ends. Overall length 102mm (4.0”).
Style 2: Aluminum crimps both ends , one end with 9.5mm (0.38”) drilled hole.
Heating Element Strap Type 125A.

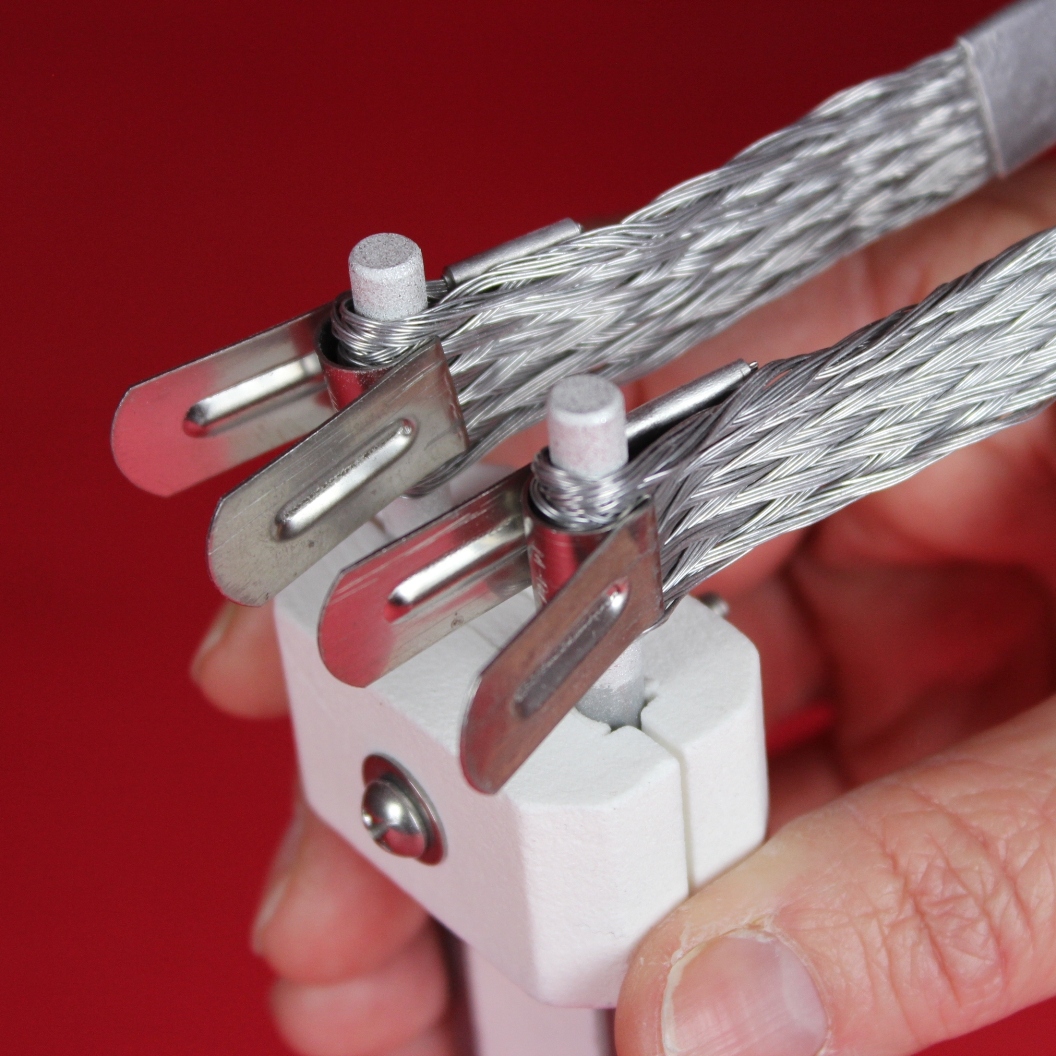

For use on 6/12 elements with 12mm diameter terminals. 125 Amp. current capacity. Double ply braid approximately 25mm (1.0”) wide x 3.0mm (0.13”) thick.
One standard style offerred.

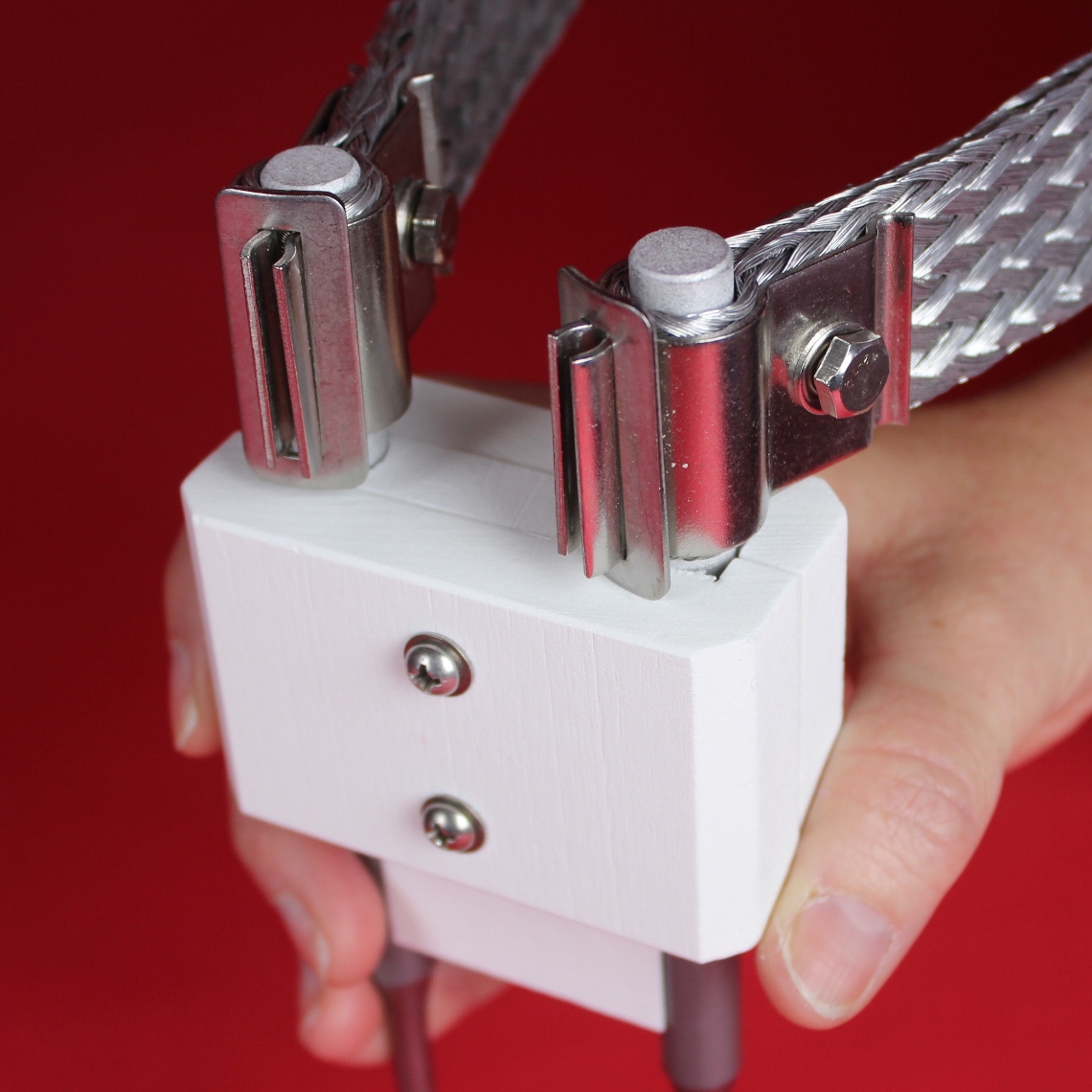

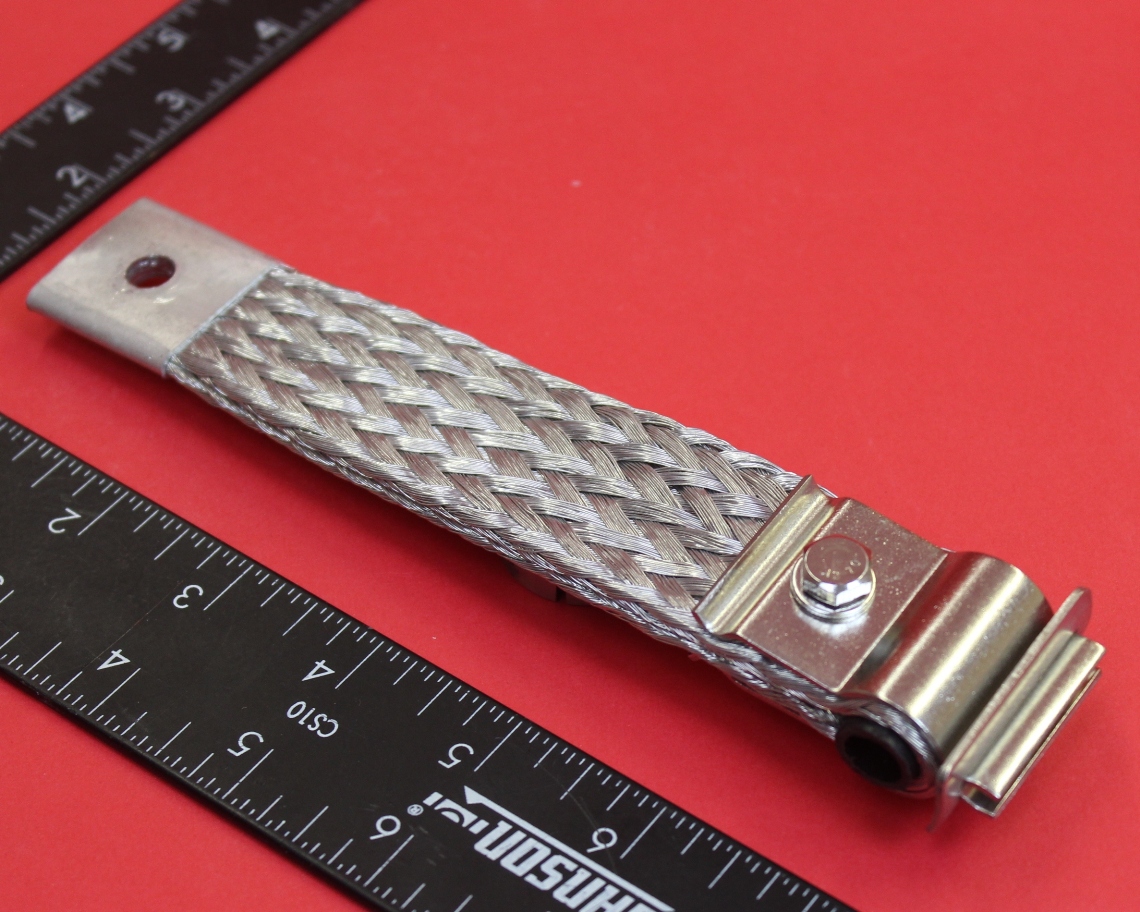

Aluminum crimp with 9.5mm (0.38”) drilled hole one end, Stainless Steel Clamp on other end. Overall length 229mm (9.0”).
